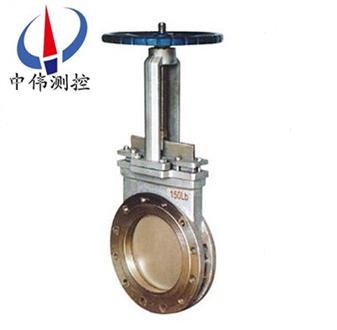

American Standard manual knife gate valve

PZ73W series American Standard manual knife gate valve The knife type gate has a good shearing, the …

Description：

A gate is introduced:
PZ73W series American Standard manual knife gate valve The knife type gate has a good shearing, the most suitable fluid in the slurry, powder granules, fibers and other difficult to control, widely used in papermaking, petrochemical, mining, drainage, food and other industries. Knife type valve with a variety of seat options, and can be controlled according to site requirements, equipped with electric or pneumatic actuators, valve automation.
Two, the application object:
PZ73W List of manual American Standard knife type valve The suitable fluid in the slurry, powder granules, fibers and other difficult to control, widely used in papermaking, petrochemical, mining, drainage, food and other industries.
Three, standard specification:
Design and manufacturing standards:
The structure of standard length: GB/T 12221-2005;
Flange standard: GB/T 9113;
Pressure temperature rating: GB/T 12224-2005;
Test standards: GB/T 13927-2008.
Four, American Standard manual knife gate valve The basic characteristics of:
1, ultra short length structure saves the material, can make the whole pipeline system greatly reduce weight.
2, small occupied space, can effectively support the pipeline strength, can reduce the possibility of pipeline vibration.
3, the gate selection of austenitic stainless steel, corrosion resistant performance is greatly improved, which can effectively prevent the gate seal leakage caused by corrosion.
4, on the packing made of flexible PTFE, reliable sealing, flexible operation.
5, the gate has "knife" function, can effectively brake off all kinds of debris in the medium.
Five, American Standard manual knife gate valve Performance parameters:
Model PZ73W-10NR Z73Y-16C;
PN 1016;
Working pressure (MPa) 1 1.6;
Suitable temperature (c) = 900 = 250;
Applicable medium dry ash, ash etc.;
The valve body material WCB ZG2Cr25Ni20Si2;
Gate 20, 25;
Support WCB ZG15Cr1Mo1V;
The stem of 2Cr13 38CrMoA1A;
Seat 25 welding hard alloy ZG2Cr25Ni20Si2;
Packing gland WCB.
Six, American Standard manual knife gate valve The main performance specifications:

Nominal pressure (MPa)	Shell test (MPa)	Seal test (MPa)	working temperature	Applicable medium
One One point six	One point five Two point four	One point one One point eight	Less than or equal to 100 DEG C Less than or equal to 425 DEG C	Pulp, sewage, slurry, coal ash, slag and water mixture

Eight, main parts material:

Body and cover	Gate valve	The stem	Sealing surface
Stainless steel, carbon steel, gray cast iron	Carbon steel, stainless steel	Stainless steel	Rubber, PTFE, stainless steel, hard alloy

Eight, the main external and connecting dimensions (mm) of:PZ273W, PZ73H, PZ73X, PZ73Y, PZ43H, PZ43X, PZ43Y

LB	DN	L	D	D1	D2	H	N-M	D0	W (Kg)
150Lb	Fifty	Forty-three	One hundred and sixty	One hundred and twenty-five	One hundred	Two hundred and eighty-five	4-M16	One hundred and eighty	Eight
	Sixty-five	Forty-six	One hundred and eighty	One hundred and forty-five	One hundred and twenty	Two hundred and ninety-eight	4-M16	One hundred and eighty	Ten
	Eighty	Forty-six	One hundred and ninety-five	One hundred and sixty	One hundred and thirty-five	Three hundred and fifteen	4-M16	Two hundred and twenty	Twelve
	One hundred	Fifty-two	Two hundred and fifteen	One hundred and eighty	One hundred and fifty-five	Three hundred and sixty-five	8-M16	Two hundred and twenty	Fourteen
	One hundred and twenty-five	Fifty-six	Two hundred and forty-five	Two hundred and ten	One hundred and eighty-five	Four hundred	8-M16	Two hundred and thirty	Twenty-two
	One hundred and fifty	Fifty-six	Two hundred and eighty	Two hundred and forty	Two hundred and ten	Four hundred and seventy-five	8-M20	Two hundred and eighty	Twenty-nine
	Two hundred	Sixty	Three hundred and thirty-five	Two hundred and ninety-five	Two hundred and sixty-five	Five hundred and forty	8-M20	Three hundred and sixty	Thirty-eight
	Two hundred and fifty	Sixty-eight	Three hundred and ninety	Three hundred and fifty	Three hundred and twenty	Six hundred and thirty	12-M20	Three hundred and sixty	Sixty-six
	Three hundred	Seventy-eight	Four hundred and forty	Four hundred	Three hundred and sixty-eight	Seven hundred and eighty	12-M20	Four hundred	One hundred
	Three hundred and fifty	Seventy-eight	Five hundred	Four hundred and sixty	Four hundred and twenty-eight	Eight hundred and eighty-five	16-M20	Four hundred	One hundred and nineteen
	Four hundred	One hundred and two	Five hundred and sixty-five	Five hundred and fifteen	Four hundred and eighty-two	Nine hundred and ninety	16-M22	Four hundred	One hundred and ninety-five
	Four hundred and fifty	One hundred and fourteen	Six hundred and fifteen	Five hundred and sixty-five	Five hundred and thirty-two	One thousand and one hundred	20-M22	Five hundred and thirty	Two hundred and eighty-five
	Five hundred	One hundred and twenty-seven	Six hundred and seventy	Six hundred and twenty	Five hundred and eighty-five	One thousand and two hundred	20-M22	Five hundred and thirty	Three hundred and eighty-nine
	Six hundred	One hundred and fifty-four	Seven hundred and eighty	Seven hundred and twenty-five	Six hundred and eighty-five	One thousand four hundred and fifty	20-M27	Six hundred	Five hundred and twenty-nine
	Seven hundred	One hundred and sixty-five	Eight hundred and ninety-five	Eight hundred and forty	Eight hundred	One thousand and seven hundred	24-M27	Six hundred	Seven hundred and ninety
	Eight hundred	One hundred and ninety	One thousand and ten	Nine hundred and fifty	Eight hundred and ninety-eight	Two thousand	24-M30	Six hundred and eighty	Eight hundred and fifty
	Nine hundred	Two hundred and three	One thousand one hundred and ten	One thousand and fifty	One thousand and five	Two thousand and three hundred	28-M30	Six hundred and eighty	Nine hundred
	One thousand	Two hundred and sixteen	One thousand two hundred and twenty	One thousand one hundred and sixty	One thousand one hundred and fifteen	Two thousand and five hundred	28-M30	Seven hundred	One thousand and fifty
	One thousand and two hundred	Two hundred and fifty-four	One thousand four hundred and fifty	One thousand three hundred and eighty	One thousand three hundred and twenty-five	Two thousand and eight hundred	32-M36	Eight hundred	One thousand and three hundred
300lb	Fifty	Forty-three	One hundred and sixty	One hundred and twenty-five	Ninety-nine	Two hundred and eighty-five	4-M16	One hundred and eighty	Eight point five
	Sixty-five	Forty-six	One hundred and eighty-five	One hundred and forty-five	One hundred and twenty	Two hundred and ninety-five	4-M16	One hundred and eighty	Ten point seven
	Eighty	Forty-six	Two hundred	One hundred and sixty	One hundred and thirty-five	Three hundred and fifteen	8-M16	Two hundred and twenty	Thirteen
	One hundred	Fifty-two	Two hundred and twenty	One hundred and eighty	One hundred and fifty-five	Three hundred and sixty-five	8-M16	Two hundred and twenty	Fifteen
	One hundred and twenty-five	Fifty-six	Two hundred and fifty	Two hundred and ten	One hundred and eighty-five	Four hundred	8-M16	Two hundred and thirty	Twenty-three point five
	One hundred and fifty	Fifty-six	Two hundred and eighty-five	Two hundred and forty	Two hundred and ten	Four hundred and seventy-five	8-M20	Two hundred and eighty	Thirty-one
	Two hundred	Sixty	Three hundred and forty	Two hundred and ninety-five	Two hundred and sixty-five	Five hundred and forty	12-M20	Three hundred and sixty	Forty point seven
	Two hundred and fifty	Sixty-eight	Four hundred and five	Three hundred and fifty-five	Three hundred and ten	Six hundred and thirty	12-M22	Three hundred and sixty	Seventy
	Three hundred	Seventy-eight	Four hundred and sixty	Four hundred and ten	Three hundred and seventy-five	Seven hundred and eighty	12-M22	Four hundred	One hundred and seven
	Three hundred and fifty	Seventy-eight	Five hundred and twenty	Four hundred and seventy	Four hundred and thirty-five	Eight hundred and eighty-five	16-M22	Four hundred	One hundred and twenty-nine
	Four hundred	One hundred and two	Five hundred and eighty	Five hundred and twenty-five	Four hundred and eighty-five	Nine hundred and ninety	16-M27	Four hundred	Two hundred and fifteen
	Four hundred and fifty	One hundred and fourteen	Six hundred and forty	Five hundred and eighty-five	Five hundred and forty-five	One thousand and one hundred	20-M27	Five hundred and thirty	Three hundred and five
	Five hundred	One hundred and twenty-seven	Seven hundred and fifteen	Six hundred and fifty	Six hundred and nine	One thousand and two hundred	20-M30	Five hundred and thirty	Four hundred and ten
	Six hundred	One hundred and fifty-four	Eight hundred and forty	Seven hundred and seventy	Seven hundred and twenty	One thousand four hundred and fifty	20-M36	Six hundred	Five hundred and fifty
	Seven hundred	One hundred and sixty-five	Nine hundred and ten	Eight hundred and forty	Seven hundred and eighty-eight	One thousand and seven hundred	24-M36	Six hundred	Eight hundred and twenty
	Eight hundred	One hundred and ninety	One thousand and twenty-five	Nine hundred and fifty	Eight hundred and ninety-eight	Two thousand	24-M36	Six hundred and eighty	Nine hundred and fifty
	Nine hundred	Two hundred and three	One thousand one hundred and twenty-five	One thousand and fifty	Nine hundred and ninety-eight	Two thousand and three hundred	28-M36	Six hundred and eighty	One thousand and twenty
	One thousand	Two hundred and sixteen	One thousand two hundred and fifty-five	One thousand one hundred and seventy	One thousand one hundred and ten	Two thousand and five hundred	28-M42	Seven hundred	One thousand one hundred and twenty
	One thousand and two hundred	Two hundred and fifty-four	One thousand four hundred and eighty-five	One thousand three hundred and ninety	One thousand three hundred and twenty-five	Two thousand and eight hundred	32-M48	Eight hundred	One thousand four hundred and eighty

Nine, ordering:
1, the PZ73W American Standard knife type valve product name and model of PZ73W American Standard knife type gate valve diameter 3 with the attachment so that we provide you the correct selection.
2, if the unit has been selected by the design Z73H American Standard knife type valve type, press Z73H American Standard knife type valve type directly to our sales department order zhongwei.
3, the occasion is very important when using more complex or the environment when you try to provide design drawings and detailed parameters by us Zhongwei valves expert audit checks for you.
Ten, inspection (unloading) notice:
1, carefully controlled products and order (the knife type valve) is the same, and there is no breakage of packing box.
2, choose suitable methods and tools, to prevent deformation or damage of the product; our company attaches great importance to the service, in order to achieve customer satisfaction product standards we have with the customer side by side, share experiences, information, commitment, goal, in cooperation between the development of excellent products. Whether you ask the product design principle, technology, price, schedule, transportation routes and any other problem, have specific customer service staff to answer your questions.
