High temperature resistant thermocouple

•

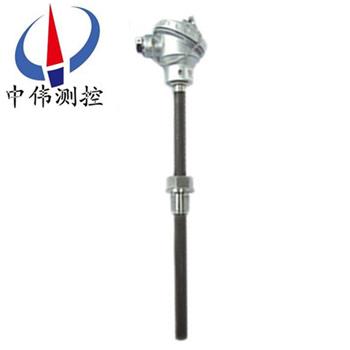

WRN series High temperature resistant thermocouple The heat resistant material and wear-resistant al…

Productoverview:
WRN series High temperature resistant thermocouple The heat resistant material and wear-resistant alloy material of special materials as temperature jacket and wear head, according to the measured temperature, material wear protection of selected tube is different, the flange or threaded connection mode, can be used for a long time for temperature measurement in the range of 0-1400 degrees, metallurgy, chemical, cement factory power plant circulating fluidized bed boiler industry using temperature sensor measurement in high temperature environment and wear Zui ideal, Zui high service life can be up to two years. The part of a wear head, a connecting rod, thread connection or flange, junction box, armored core, the wear-resisting head should be based on the actual temperature of the selected material, connecting rod, thread connection or flange should be according to the site there is no corrosive medium material.

Two, work principle:
WRN series High temperature resistant thermocouple The electrode is composed of two different conductor materials. When there is temperature difference between the measuring terminal end with the reference, will produce thermal potential, the instrument will display relevant thermal potential temperature.
The thermocouple electromotive force will increase with the increase of temperature measurement terminal, thermoelectric sizeonly withthermocouple conductor material and the temperature difference between the two ends of the length, diameter and thermal electrode without thermocouple assembly is mainly composed of a junction box, protection tube, insulation casing, terminals, power extremely basic structure, and with various fixed device.

Three, application:
WRN series High temperature resistant thermocouple Wear protective paint technology, high chromium cast iron and high temperature alloy made of different materials by plasma tube, specifically for high measurement environment, low temperature resistant design and manufacture, can be used in circulating fluidized bed, fluidized bed furnace, cement rotary kiln tail smoke chamber, pulverized coal furnace, milling machines and other industrial field,

Four, main features:
1, after the surface hardness of tungsten carbon alloy MVD to Rockwell HRC76 (about 1750 of Vivtorinox, ceramic grade) is 8 times the average hardness of stainless steel. Ordinary wear material hardness below HRC60.
2, the metal sheath creep point of 1850~2050 DEG C; high melting point: 2100 degrees, 1800 degrees below no bending deformation of high temperature combustion.
3, the surface of the alloy layer and the substrate to generate a whole stainless steel, so the thermal expansion coefficient and thermal resistance are exactly the same, there will be no cracking at high temperature.
The 4 generation of oxide film, high temperature, effectively prevent the oxidation corrosion of SO2 gas.

Five, technical parameters:
Wear protective tube:
1, the measuring range of wear-resistant materials C MPa nominal pressure protection tube mm selection code;
2, plasma spray paint 0-800 less than or equal to 10 Phi 16, Phi 18, Phi 25, Phi 38 LM;
3, high chromium cast iron 0-1150 = 15, Phi 25, Phi 38 CM;
4, high temperature alloy 0-1300 is less than or equal to 20 Phi 18, Phi 25, Phi 28 KMA;
5, surfacing 0-1300 = 20, Phi 18, Phi 25, Phi 28 T;
Thermocouple (resistance):
與裝配式相同，熱電偶I級，熱電阻A級按協議訂貨
1, non 1Cr18NI9Ti material wear protective tube part
2, electrical outlet: M20 * 15, NPT1/2
3, protection grade: IP65
Six, according to the characteristics of wear casing is divided into the following categories:
1, wear resistant high temperature alloy high temperature wear: according to the characteristics of environment, using specially designed vacuum smelting of pure alloy, special wear-resistant high temperature alloy with high strength and high oxidation resistance at high temperature, the whole drilling and forging. Processing less defects, high reliability, high temperature strength and wear resistance performance is good, the price is higher, with a temperature of 800~1200 DEG C.
2, the composite wear-resistant alloy: the composite armor technology with abrasive particles to high temperature alloy, precision casting. Without turning, the casing of high hardness, high temperature oxidation, some casting defects but does not affect the high temperature wear resistance and sealing, is the use of high temperature wear casing, Zui ordinary moderate price, use temperature of 800~1200 DEG C.
3, ion osmosized tungsten carbide: stainless steel substrate by ion beam implantation of tungsten carbide particles in the casing surface infiltration technology. With high hardness, high strength and high toughness, special wear-resistant, wear-resistant layer thickness is 0.5 ~ 1.5mm, hard, tough, Zui small diameter up to 8, good surface quality, use temperature of 0~800 DEG C. In the power plant coal grinding machine used in the life of 2 years.

Seven, the use of:
1, NM series alloy steel wear-resistant thermocouple is mainly composed of a junction box, connecting pipe, special protection tube, insulation casing, casing, liner terminals, special thermode basic structure, and is equipped with various installation components, and optional integrated temperature transmitter in selected parts.
2, NM series alloy steel thermocouple protection tube wall thickness is 4~8 mm (average temperature is determined according to the place). The protective tube is designed for cement plant, its function is extended in C3, C4, C5, decomposing furnace, three wind pipe, smoke, kiln head temperature measuring points on the service life of the thermocouple.
3, the installation of the product, according to various industrial control points in different pre kiln blank or protection tube, and select the corresponding specifications of special thermocouple.
4, in the product design process, we have given full consideration to the 1000 to running the specifications and models to install the 10000T/D cement production line, production line for each control point for your use.
5, the length of the protection tube: furnace furnace wall thickness + insertion depth + = length of exposed part outside the furnace
6, in the production process, installation or replacement of the thermocouple, please slow into a furnace and thermocouple fixing and connecting device.
7, in the process of control point in the long-term temperature of 1100 DEG C, K type thermocouple work for about 60 days or so, at a high temperature state for a long time even silk, its accuracy will have small changes, temperature components can process requirements can be replaced.
8, related to the feeding or flushing places of use within 60 working days after the thermocouple, thermocouple 90 C flip re installed, the special wear-resistant thermocouple double the life.

Eight, media products:
1, strength:
NM alloy steel thermocouple protection tube is a new type of alloy materials in silicon, stomatal completely by silicon metal filling, the porosity is close to zero, high strength, corrosion resistance, abrasion resistance, oxidation resistance, long service life, the new material strength than general 3039H, 0Cr25Ni20 materials up to 5~10 times more.
2, excellent oxidation resistance:
The porosity is close to zero, the antioxidant properties of NM alloy steel is greatly improved, the high temperature service life can be extended by 3~10 times. This metal silicon carbide once heated to a high temperature, the surface of the natural formation of oxide thin protective film, this film even damage at high temperature will automatically make oxidation regeneration and healing, deterioration does not occur.
3, high heating efficiency: far infrared radiation NM metal silicon carbide rate is close to the perfect blackbody, for heat radiation components, will greatly improve the thermal efficiency of the unit.
4, excellent resistance:
General wear can not guarantee insulator, but NM metal silicon carbon material has good conductive properties, and has the function of static release, apply to the characteristics of multiple occasions.
5, high wear resistance:
NM alloy steel material hardness Hv > 27Gpa, in various media with extremely low wear rate and friction coefficient, and self lubrication, the material has excellent wear resistance under high temperature, special wear-resistant temperature measurement applications especially suitable for cement production line.
6, excellent corrosion resistance: NM metal silicon carbide material has good corrosion resistance, corrosion resistant acid medium under various temperature conditions, corrosion in alkaline medium at room temperature.
The following 7 specific technical parameters:

Nine, models and specifications:

Ten, the selection of encoding:

Eleven, design and ordering:

1, note the type, number, using temperature range index.
2, the thermocouple protection tube diameter, length, material etc..
3, fasteners, flange, the need to provide relevant dimensions.
Customer service service commitment:
1, I sold by the company Thermocouple series The product within twelve months of quality problems, responsible for free maintenance.
2, the warranty period if the products of our company have any quality problems, our company is responsible for free repair or replacement.
3, the warranty period if the user use undeserved, cause damage to the product, our company is responsible for the maintenance, collect the damaged parts cost.
4, after the warranty period of product quality problems, our company is responsible for the maintenance, collect the damaged parts cost.
5, if the user needs to our service, our company in the province of the user service personnel arrived at the scene within 12 hours, arrived at the scene 48 hours outside users.
