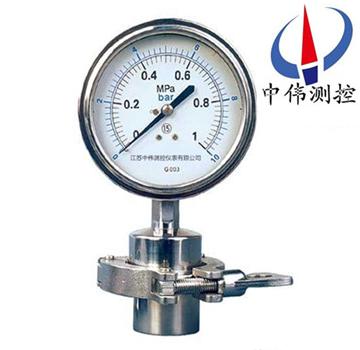

Clamp the diaphragm pressure gauge
Clamp the diaphragm pressure gauge is the universal pressure gauge isolator with diaphragm to form a…
Description：
YKCN - 100 - b seriesClamp the diaphragm pressure gaugeBased on clamp installation whole health level of stainless steel diaphragm pressure gauge.Is suitable for measuring high viscosity, easy to crystallization, easy to solidification and have solid suspended matter medium pressure, and for some measurement medium can not directly into the universal pressure gauge and the place where the easy cleaning to prevent precipitation pressure test, must be used by the diaphragm isolator and universal pressure gauge table to form a system of diaphragm.Applicable to beer, beverage and other food and pharmaceutical industries.
Second, the working principle:
YKCN - 100 - b series clamp diaphragm pressure gauge by all sorts of general and different structure diaphragm type pressure gauge isolator to form a closed system, the sealing liquid filling.When the measured medium pressure acting on the diaphragm, diaphragm deformation, compression sealing fluid in a closed system.Due to the inherent nature of sealing fluid, make the elastic element of pressure gauge produces corresponding elastic deformation, displacement, by indicating device shows pressure value.When the enough stiffness of the diaphragm, pressure meter indicating pressure near the measured medium pressure value.
Applications:
YKCN - 100 - b series clamp diaphragm pressure gauge at the scene of the process of dismantling convenient, not pollution, easy to clean, safe and reliable, and can meet the requirements of production quality standard (GMP), in the pharmaceutical, food and beverage, water treatment and other industries of health requirements is widely used in the process.
Four, the main features:
1, the temperature characteristic
Because the diaphragm table filled the sealing liquid system as the pressure transmission medium, and the quantity of the diaphragm table temperature sealing liquid coefficient of expansion and compression of diaphragm stiffness and parts related to the temperature.Temperature gauges are used in deviated from its 20 + / - 5 ℃, particularly for the influence of low range pressure gauge.General compression zone temperature error is not more than 1.0% / ℃, so the temperature of the diaphragm table is generally by the universal pressure gauge temperature affects measure and diaphragm separator compression zone temperature influence both combined.
2, poor level
Especially for diaphragm table with soft connecting pipe, because the diaphragm compression zone and universal pressure gauge installation position is not in the same horizontal plane, will produce the effect of liquid level difference, more attention should be paid to in precise measurement.
3, the corrosion resistance
Diaphragm table of corrosion resistance can be suitable for the selection and measurement of media contact part of the diaphragm, the flange and the sealing gasket materials to ensure that.
Five, the choice of materials:
1, the diaphragm material: 0 cr17ni12mo2 (316);0 cr17ni14mo2 (316 l);Monel alloy (Cu30Ni70);Hartz alloy (H276C);Tantalum (Ta) and fluorine plastic (F4).
2, flange material: stainless steel 0 cr18ni9 (304), 0 cr17ni12mo2 (316);Stainless steel lined with fluoroplastic (316 + F4).
3, sealing gasket material: rubber;Fluorine rubber;Silicone rubber and fluorine plastic.
Six, composition:
1, all stainless steel pressure gauge with diaphragm seal;
2, stainless steel clamp;
3, anticorrosive aprons;
4, the flange welding connection.
Nut inside pipeline screw thread connection type pressure gauge of health consists of two: (1) with a diaphragm seal all stainless steel pressure gauge;(2) female thread connection screw.
Seven, diaphragm device flange size:
1, clamp diaphragm separator [code MC];
2, flange size B A 1 1/2 43.5 50.5 2, 56.5 64.0;
3, optional parts (in accordance with ISO - 2852 standard).
Eight, the diaphragm liquid choice:
The choice of diaphragm liquid:
Name of working fluid | Diaphragm device temperature range (℃) | Instrument working environment temperature (℃) |
Glycerol aqueous solution | - 5-100 | - 5 ~ 40 |
Silicone oil (low viscosity) | - 40 ~ 130 | - 30 ~ 50 |
Silicone oil (high viscosity) | - 30 ~ 240 | - 20 ~ 60 |
For note | The sealing liquid if there is any special requirement, please negotiate with the company. | |
Nine, specifications:
The product name | Product model | Precision grade | Measuring range (MPa) | The connection method |
The diaphragm pressure gauge | YTP-60ML | 2.5 | 0 ~ 0.1 ~ 6 | M14×1.5 |
YTP-100ML | 1.6 | 0 ~ 0.1 ~ 40 0.1 ~ 0 ~ 0.1 | M20×1.5 | |
YTP-150ML | 1.6 | M20×1.5 | ||
YTP-100MF | 1.6 | 0 ~ 0.1 ~ 10 0.1 ~ 0 ~ 2.4 | Open the flange | |
YTP-150MF | 1.6 | |||
YTP-100MG | 1.6 | 0 ~ 0.1 ~ 10 0.1 ~ 0 ~ 2.4 | H of the flange | |
YTP-150MG | 1.6 | |||
YTP-100GL | 1.6 | 0 ~ 0.1 ~ 10 0.1 ~ 0 ~ 2.4 | Angle of the flange | |
YTP-150GL | 1.6 | |||
YTP-100RL | 1.6 | 0 ~ 0.1 ~ 10 0.1 ~ 0 ~ 2.4 | The hose connection | |
YTP-150RL | 1.6 | |||
The diaphragm pressure clamp health typetable | YKCN-100MC | 1.6 | 0 ~ 0.1 ~ 1.6 | Clamp connection |
YKCN-150MC | 1.6 | |||
Note: such as membrane material, membrane materials and for instrument flange dimensions have special requirements, please negotiate with the company. | ||||
Note: 1, users also can choose other universal pressure gauge, when ordering negotiated with our company.
2, pressure gauge with diaphragm connection also can choose other forms, when placing order, negotiate with the company.
After-sales service commitment:
1, our company sold by pressure gauge series product appeared quality problem within 12 months, responsible for free maintenance.
2, the warranty period, any quality problems such as the products of our company, my company is responsible for free repair or replacement.
3, the warranty period, such as user improper use, damaged products, my company is responsible for the maintenance, charge damage parts cost.
4, after the warranty period appear quality problem, my company is responsible for the maintenance, charge damage parts cost.
5, such as user need to my company site services, to users in the province I company service personnel to reach the site within 12 hours, fujian association of foreign languages and user reach the site within 48 hours.
